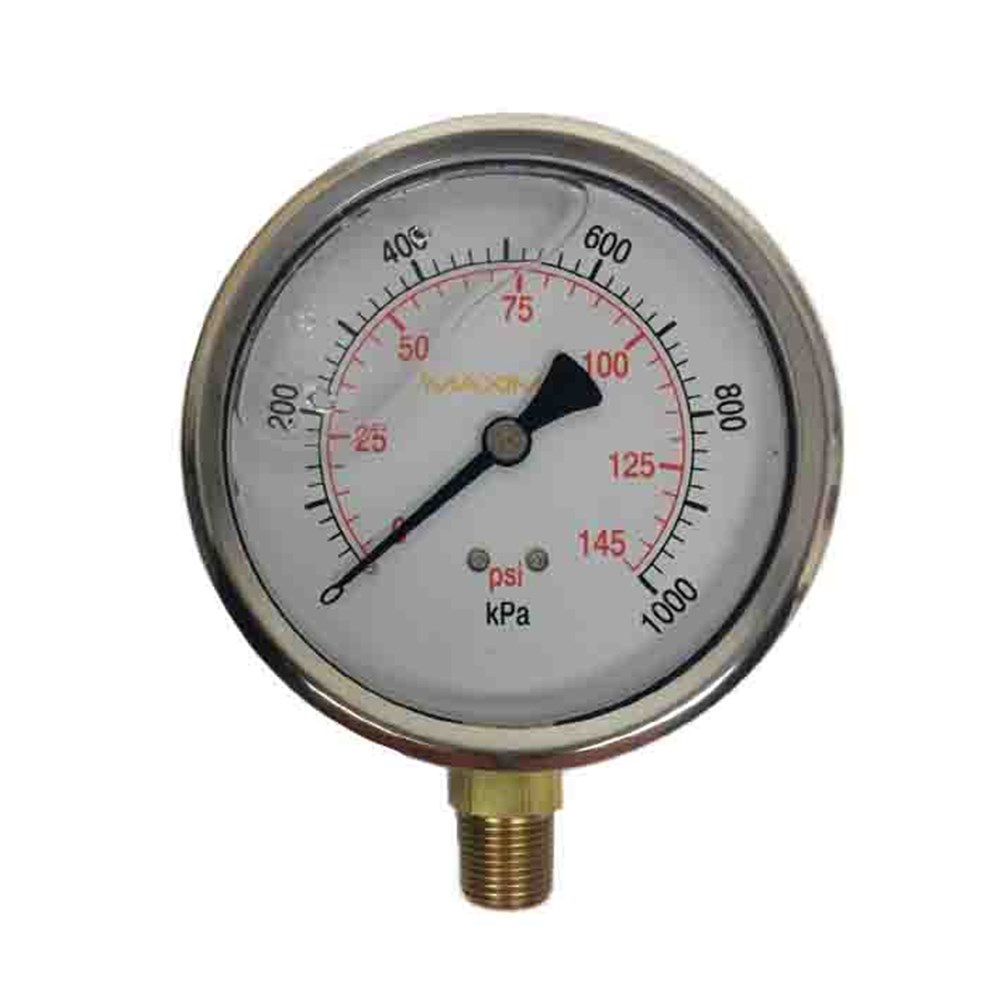

SS PRESSURE GAUGE - 100 mm, Bottom Entry x 3/8 BSP, Custom Branded

Product Code: GHP100L3-AL

RRP $0.00
ex GST
Quantity In Cart:
Qty Each
Description
Pressure gauges display positive pressures generated within hydraulic and pneumatic pipelines between valves, filters and pumps and can be calibrated with singular or multiple units of measurement, available with casing materials of black steel or stainless steel, threaded with BSPT, BSPP or NPT in materials of brass or stainless steel. Gauges can also be  filled with Glycerine to reduce surge and shock generated in systems.
  • Case in stainless steel, grade 304
  • Dial size 100 mm (4")
  • Glycerine filled
  • Face is shatterproof Polycarbonate material
  • Bottom entry brass thread 3/8" BSPT
  • Dual calibration of Kpa and PSI
  • Bourbon tube and movement are copper alloy
Applications include:
  • Industrial
  • Process control
  • Irrigation
  • Petro-chem
  • Marine
Technical Specifications
Keywords Gauge - Pressure Glycerine Filled
Brand Custom Branded
End Connection 1 BSP Male
Material Stainless Steel - Grade 304
Size 100 mm (4")
