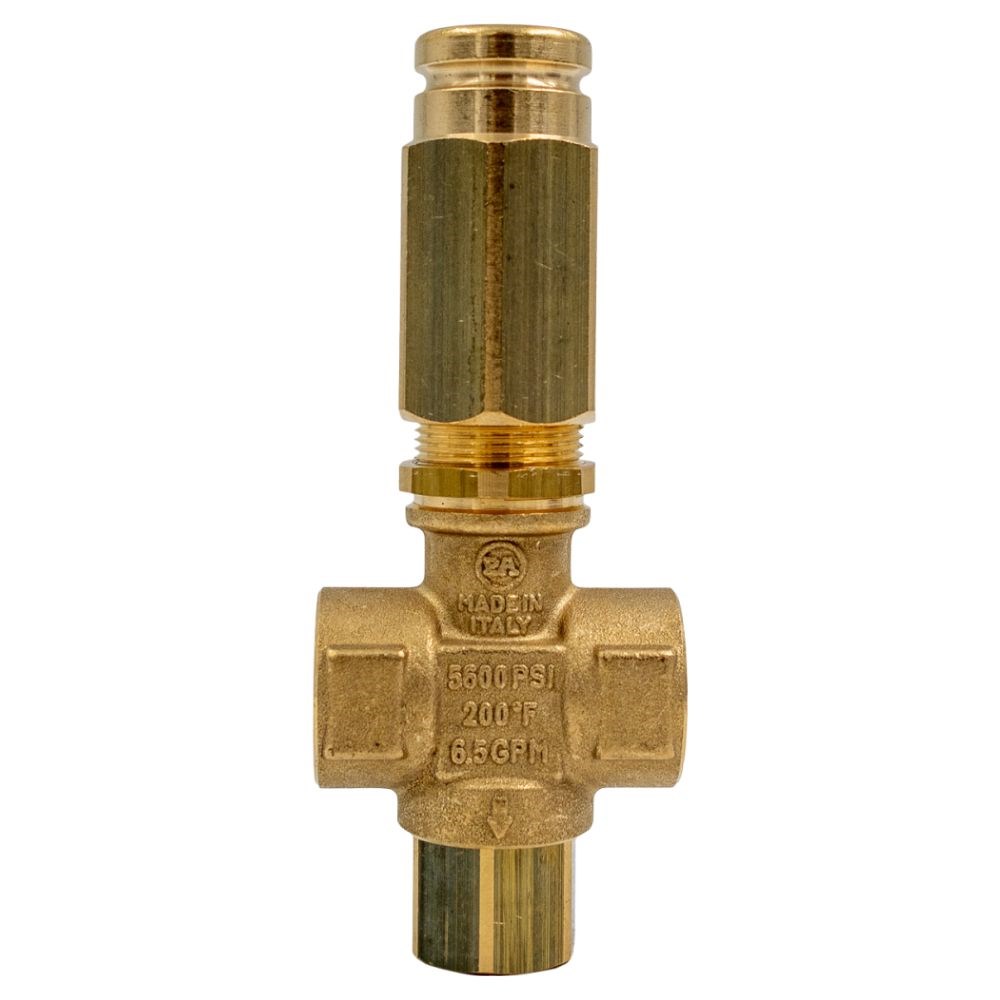

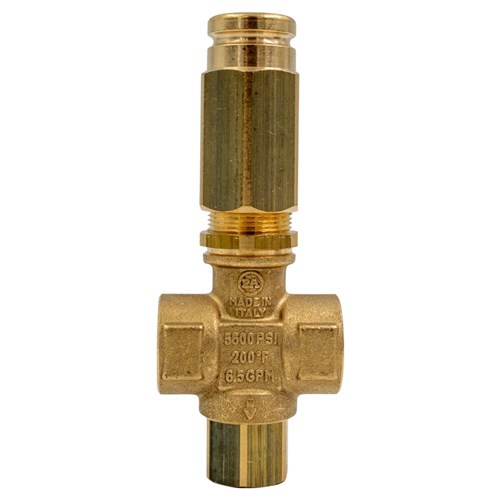

SAFETY VALVE VS350 5100 PSI - 25LPM

Product Code: PGU-1850-00

BUY ONLINE FROM A DISTRIBUTOR --- CLICK HERE
Increase value Decrease value
Quantity In Cart:
RRP $130.00 incl. GST
Features
  • VS350 PA Safety Valve
  • Compensated pressure regulating valve.
  • Regulates fluid bypass with minimal variation of the pressure.
  • Suitable to be used as a relief valve.
  • Secure intervention discharging all the flow.
  • Prompt and effective damping against pressure spikes.
  • The valves supplied are NOT PRESSURE ADJUSTED. They become a SAFETY device when adjusted by the installer on the machine.
Technical Specifications
Keywords Safety Valve VS350
Inlet Port 2 x 3/8? BSP F
Material Brass
Temperature Degree C 90°C
Working Pressure PSI 5,100 PSI (5,650 PSI max.)
Weight 475 g
Bypass 3/8? BSP F
Flow 25 L/min max
