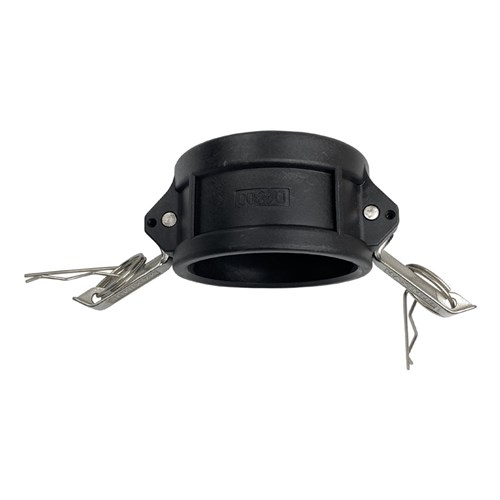

POLYPROPYLENE CAMLOCK COUPLER - TYPE DC x Dust Cap

Product Code: PPDC

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description

A versatile quick release coupling system utilises units with male or female threads for screwing onto piping or pump outlets and hosetails for hose assemblies.

Connection is achieved by inserting the Adaptor into the Coupler and closing the arms with hand pressure.

For extra strength these couplings have a 30% Fibreglass reinforcement content and can be used for the transfer of aqueous liquids, dry bulk materials, fuels, chemicals, cosmetics, vapours and food products. Female Couplers come standard with EPDM seals, check compatibility data for correct material to suit media being conveyed.

These couplings conform to Military Specification MIL A-A-59326 and are interchangeable in sizes 20 to 100 mm with other products manufactured to the same standard, size 15 mm is not covered by this standard and components from different manufacturers’ may not interchange.

Technical Specifications
Keywords Camlock Dust Cap
Brand MAXIMUS
Material Polypropylene
Seal Material EPDM
Temperature Degree C -30C to +100C
Working Pressure PSI Zero
