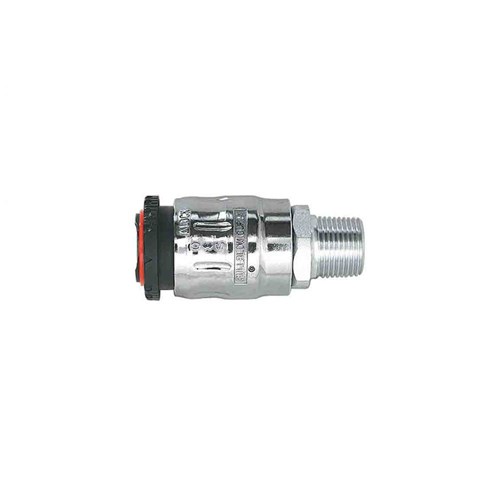

NITTO FULL-BLOW CUPLA SOCKET - Tube, Aluminium body, NBR seals

Product Code: QCPA-FBH-SN

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
Quick connect fittings consisting of a body and plug are used to provide a fast, make or break connection of hydraulic and pneumatic transfer lines found in manufacturing and warehouse facilities. Operated by hand, these couplings can replace threaded and flanged connections and are ideal where space limitations exist. Terminations of hosetail, male or female threads and compression socket for plastic tubes are available in aluminium, brass, stainless steel and plastic materials to suit specific media being conveyed.
  • Nitto Series FBH Full-Blow Cupla body
  • Tube compression socket
  • Built-in lock operation on sleeve
  • Purge operation
  • Open and close while connected
  • Lightweight aluminium
  • NBR seals with temperature range of -20 to +60 degree C
  • Working pressure of 217 psi
Applications:
  • Pneumatic installations
  • Areas requiring added safety for operators
Technical Specifications
Keywords Nitto Full Blow Cupla
Application Pneumatics
Brand NITTO
End Connection 1 Coupler Body
End Connection 2 Tube Socket
Material Aluminium
Seal Material NBR
Temperature Degree C -20C to +60C
Working Pressure PSI 217
