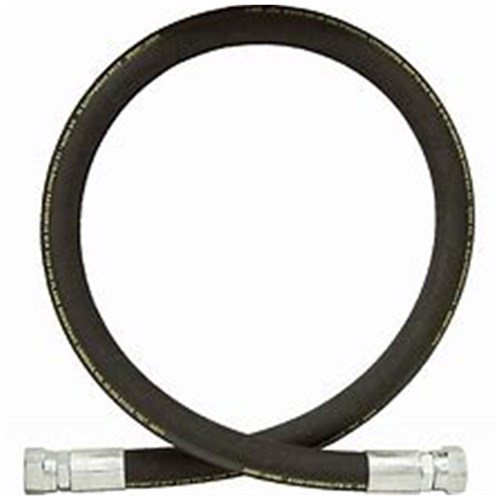

HOSE ASSEMBLY - R2 x 3/8 with Female JIC Swivels crimped both ends

Product Code: HH02EA5A5

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
Hydraulic hose type R2-AT assemblies in -06 (3/8") size with JIC Female swivels on each end used for connections from pumps and valves to linear actuators, cylinders and pipework on various types of machinery in manufacturing facilities, warehouses and on agrictural farms, rated working pressure of 4000 psi and temperature range up +125 degree C for petroleum based hydraulic fluids.
  • Rubber cover
  • Synthetic rubber tube
  • Reinforced with 2 braids of high tensile steel wire
  • One piece crimped hose coupling
  • Female swivel each end of 9/16" JIC
Applications:
  • Transfer of petroleum based fluids at high pressure
  • Manufacturing machinery
  • Farm equipment
  • Materials handling machinery such as forklifts
  • Baling presses
Technical Specifications
Keywords Hydraulic Hose - Assembly
Brand BAT
Clamp Method Crimped
Colour Black
End Connection 1 JIC Female Swivel - 9/16"
End Connection 2 JIC Female Swivel - 9/16"
Material Rubber
Size 3/8"
Temperature Degree C -40C to +125C
Working Pressure PSI 4000
