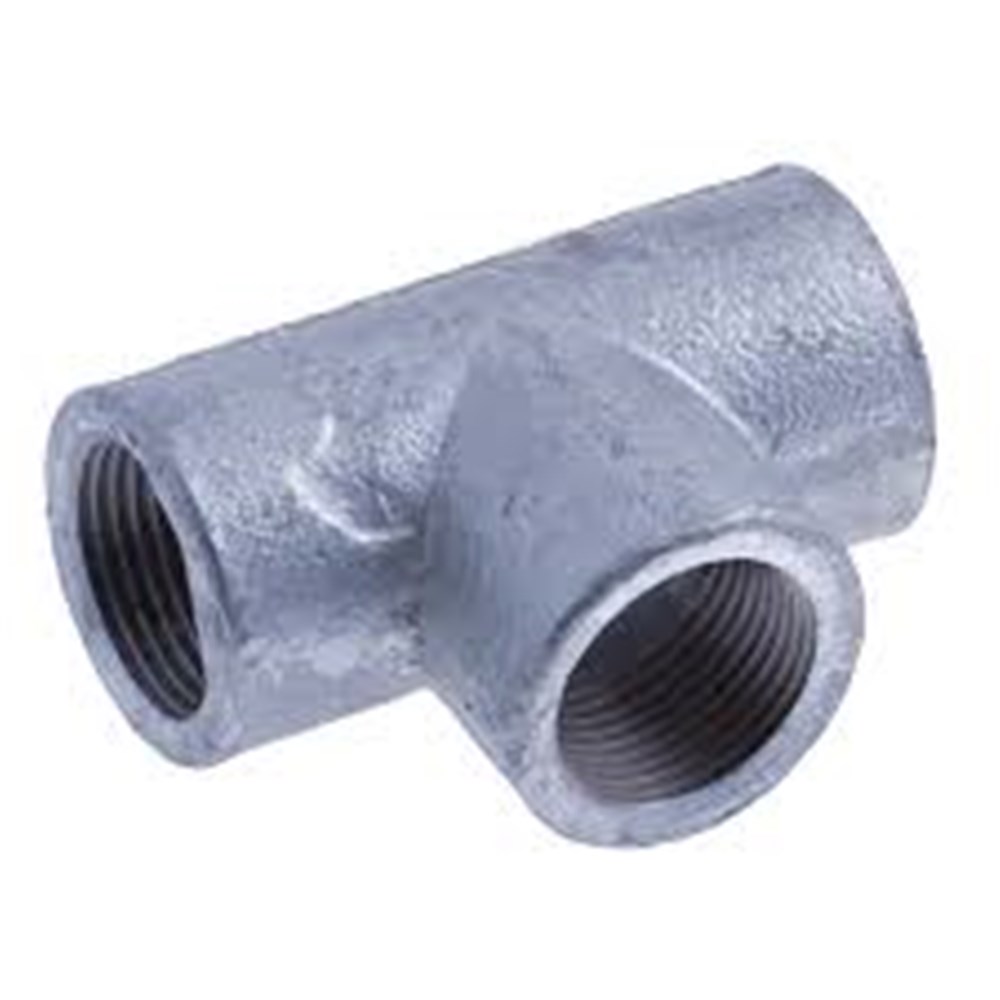

GALVANISED STEEL TEE - BSP female

Product Code: SGP35

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description

These plated carbon steel threaded fittings are used extensively in the fabrication of piping installations where medium and high pressures are used, suitable for pipelines handling water, steam, oil and gas.

  • Materials & dimensions conform to EN 10241
  • Electro Zinc Plated surface finish protects against moisture and other corrosive elements
  • BSP threads to ISO 7.1
  • NPT threads to ANSI  B1.20.1
  • Union seating options of metal to metal, metal to brass or brass to brass
  • Working pressure for forged and bar components is 725 psi @ 3:1 safety factor
  • Working pressure for pipe components is 240 psi @ 3:1 safety factor
  • Working pressure for fabricated components above 65 mm is 365 psi @ 3:1 safety factor

Applications include:

  • General engineering
  • Oil & Gas transfer lines
  • Hydraulic lines
  • Steam lines
  • Water
  • Power generation
Technical Specifications
Keywords Tee
Brand BAT
