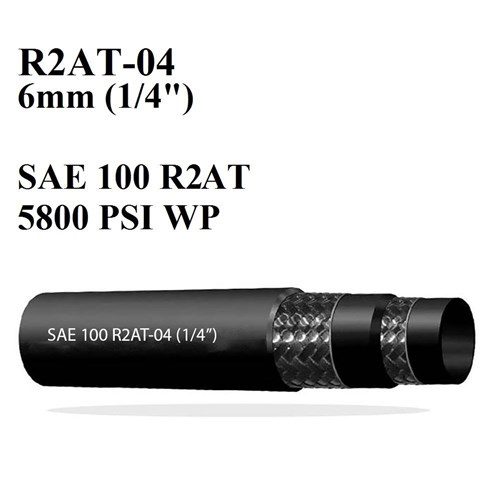

CUSTOMISED HYDRAULIC HOSE ASSEMBLY R2AT-04 (1/4") BSP - JIC COMBINATIONS

Product Code: HHR02C-04

BUY ONLINE FROM A DISTRIBUTOR --- CLICK HERE
RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each

Create your kit

1. Core Components

Core Components Description
LICFA Labour Charge - FITTING ASSY

2. Customise Product

2. Variable Quantity Items:

HYD HOSE - R2AT No-Skive HHRR02-04 Size: 1/4" Cut Length MTR 1.0000 $27.05
CRIMP CPLG - BSPPM HYC021A10-0404 Size: 1/4" x 1/4" EA 1.0000 $18.95
CRIMP CPLG - BSPPF S/W HYC021A17-0402 Size: 1/4" x 1/8" EA 1.0000 $19.85
CRIMP CPLG - BSPPF S/W HYC021A17-0404 Size: 1/4" x 1/4" EA 1.0000 $18.06
CRIMP CPLG - BSPPF S/W HYC021A17-0406 Size: 1/4" x 3/8" EA 1.0000 $22.14
CRIMP CPLG - BSPTM HYC021A22-0402 Size: 1/4" x 1/8" EA 1.0000 $16.30
CRIMP CPLG - BSPTM HYC021A22-0404 Size: 1/4" x 1/4" EA 1.0000 $15.00
CRIMP CPLG - BSPTM HYC021A22-0406 Size: 1/4" x 3/8" EA 1.0000 $17.06
CRIMP CPLG - JICM HYC021A50-0407 Size: 1/4" x 7/16" EA 1.0000 $20.82
CRIMP CPLG - JICM HYC021A50-0409 Size: 1/4" x 9/16" EA 1.0000 $17.28
CRIMP CPLG - JICF S/W HYC021A53-0407 Size: 1/4" x 7/16" EA 1.0000 $14.45
CRIMP CPLG - JICF S/W HYC021A53-0408 Size: 1/4" x 1/2" EA 1.0000 $21.64
CRIMP CPLG - JICF S/W HYC021A53-0409 Size: 1/4" x 9/16" EA 1.0000 $14.65
CRIMP CPLG - JICF S/W HYC021A53-0412 Size: 1/4" x 3/4" EA 1.0000 $23.45
CRIMP CPLG 90C ELB - BSPF S/W HYC021B17-0404 Size: 1/4" x 1/4" EA 1.0000 $39.68
CRIMP CPLG 90C ELB - JICF S/W HYC021B53-0407 Size: 1/4" x 7/16" EA 1.0000 $36.07
CRIMP CPLG 90C ELB - JICF S/W HYC021B53-0409 Size: 1/4" x 9/16" EA 1.0000 $32.46
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-0404 Size: 1/4" x 1/4" EA 1.0000 $37.43
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-0406 Size: 1/4" x 3/8" EA 1.0000 $38.42
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0407 Size: 1/4" x 7/16" EA 1.0000 $36.49
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0408 Size: 1/4" x 1/2" EA 1.0000 $39.68
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0409 Size: 1/4" x 9/16" EA 1.0000 $39.04
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-0407 Size: 1/4" x 7/16" EA 1.0000 $44.98
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-0409 Size: 1/4" x 9/16" EA 1.0000 $46.88
CRIMP CPLG 45S ELB - BSPF S/W HYC021J17-0404 Size: 1/4" x 1/4" EA 1.0000 $37.43
CRIMP CPLG 45S ELB - BSPF S/W HYC021J17-0406 Size: 1/4" x 3/8" EA 1.0000 $38.42
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0407 Size: 1/4" x 7/16" EA 1.0000 $36.49
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0408 Size: 1/4" x 1/2" EA 1.0000 $45.11
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0409 Size: 1/4" x 9/16" EA 1.0000 $39.04
CRIMP CPLG - BANJO x BSPPM HYC021A42-0404 Size: 1/4" x 1/4" EA 1.0000 $26.23
PLASTIC GUARD - 12.5 mm ID HPPT01-016 MTR 1.0000 $3.52

3. Optional Items:

Fitting off-set angle x 0 Straight Ends or One angle Only LHAO-000 1.0000 $0.00
Fitting off-set angle x 45 LHAO-045 1.0000 $0.00
Fitting off-set angle x 90 LHAO-090 1.0000 $0.00
Fitting off-set angle x 135 LHAO-135 1.0000 $0.00
Fitting off-set angle x 180 LHAO-180 1.0000 $0.00
Fitting off-set angle x 225 LHAO-225 1.0000 $0.00
Fitting off-set angle x 270 LHAO-270 1.0000 $0.00
Fitting off-set angle x 315 LHAO-315 1.0000 $0.00

4. Add to Cart

$$15.65 $0.00 $0.00
Description
 Easy How To Steps
1  Recognise Hose - Type & Size        See How     https://www.batind.com.au/Themes/BPDTHEME01/theme-client-updates/Hose Identification.pdf?u=1Ulg4d5
2  Identify End Connections               See How
3  Measure Assembly Hose length    See How     https://www.batind.com.au/images/Measure Assembly.pdf?u=1UliN7
4  Build Your Hose                                See How
5  Track Your Delivery

Features
All R1AT  1 wire hoses are subsitued with R2AT 2 wire hoses
