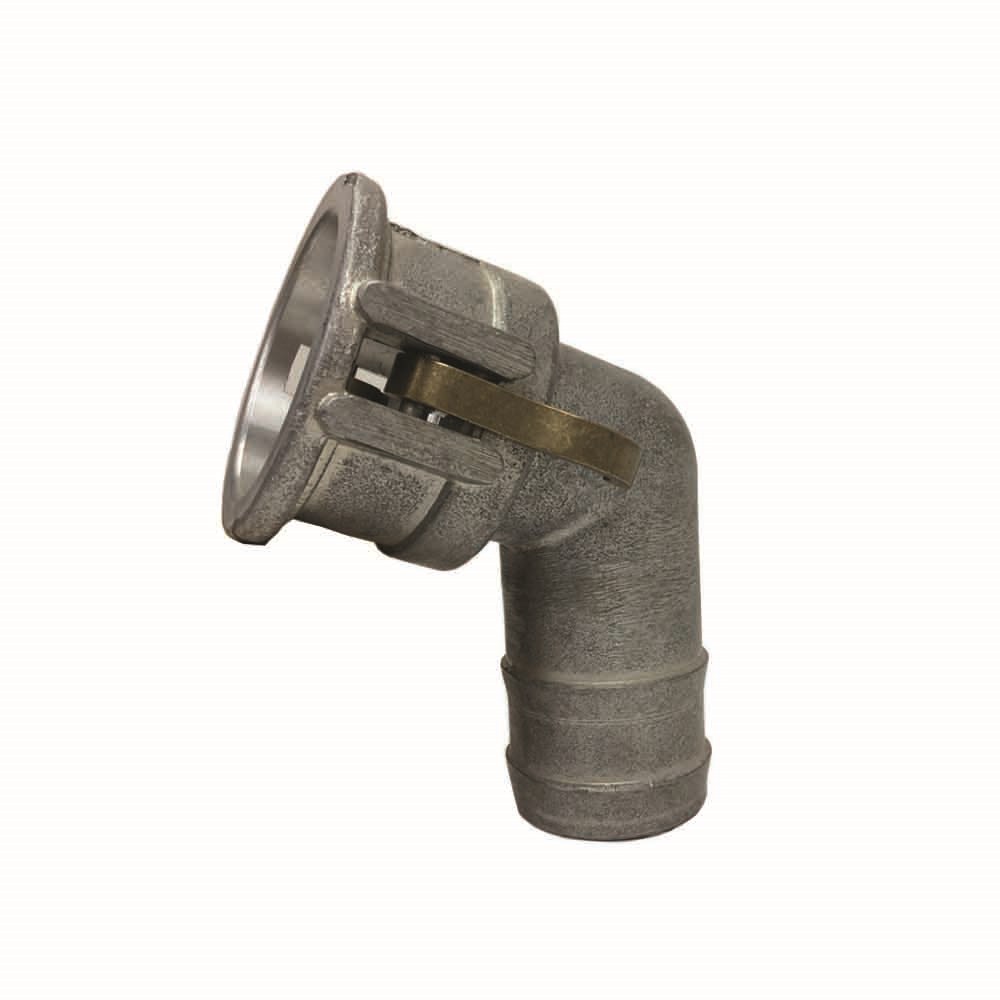

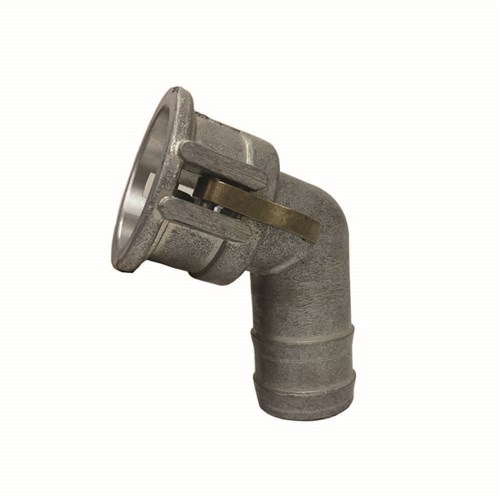

ALUMINIUM CAMLOCK MIL SPEC COUPLER - TYPE BC x 68 Deg Hosetail

Product Code: ALBC

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description

A versatile quick release coupling system utilises units with male or female threads for screwing onto piping or pump outlets and hosetails for hose assemblies.

Connection is achieved by inserting the Adaptor into the Coupler and closing the arms with hand pressure.

Couplings can be used for the transfer of aqueous liquids, dry bulk materials, fuels, chemicals, cosmetics, vapours and food products. Robust heavy duty Coupler design makes this range suitable for use with Tanker Trucks. Female Couplers come standard with NBR seals, check compatibility data for correct material to suit media being conveyed.

These couplings conform to Military Specification MIL A-A-59326 and are interchangeable in sizes 20 to 150 mm with other products manufactured to the same standard, sizes 15 and 200 mm are not covered by this standard and components from different manufacturers’ may not interchange.

Technical Specifications
Keywords Camlock Coupler
Brand BAT
End Connection 1 Hose Tail
Material Aluminium - MIL Spec
Seal Material NBR
Temperature Degree C -40C to +100C
