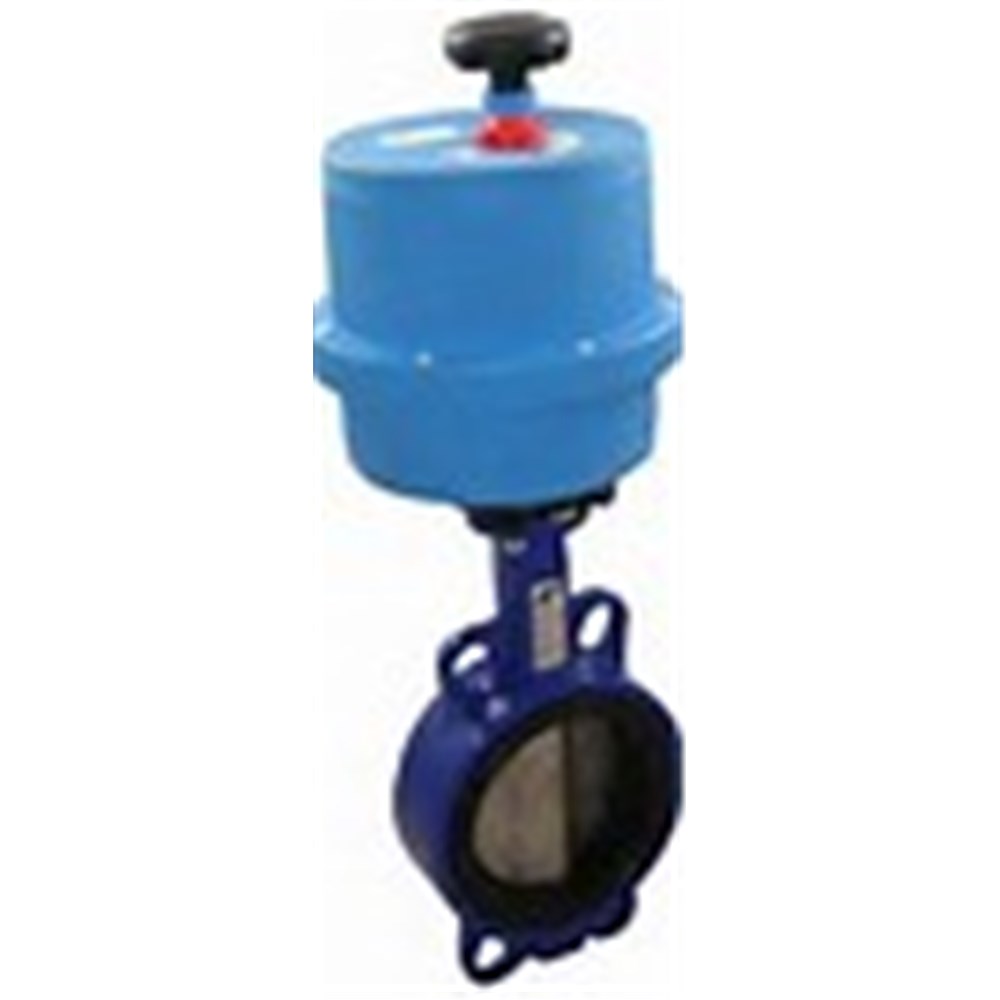

CAST IRON BUTTERFLY VALVE - WAFER x Electric Actuated - 24 VAC

Product Code: CIVBFWAEA24

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal

This range is Pneumatically actuated with either double acting (DA) or spring return (SR) operation, can also be provided with Electric Actuators and soleniod valves to automate the processing function of the valve
  • Electric actuated for 24 VAC
  • Wafer design body to allow to the valve tp slip between 2 flanges
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • NBR seals
  • Stainless steel grade 316 disc
  • Low operating torque
  • Straight through flow
Applications include:
  • Water pipelines
  • Petroleum
  • Chemical
  • Refineries
  • Pulp and paper
  • Power plants
Technical Specifications
Keywords Wafer Butterfly - Electric
Brand BAT
Disc Material Stainless Steel - Grade 316
Material Cast Iron
Operator Type Electrical
Seal Material NBR
Temperature Degree C -5C to +85C
Voltage 24 VAC
Working Pressure PSI 116
