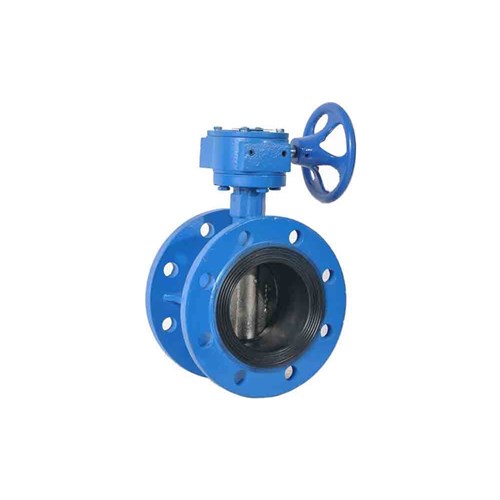

CAST IRON BUTTERFLY VALVE - WAFER x Double Flange Table E, Gear Operated

Product Code: CIVBFWDFE

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal

These double flanged products are ideal for use as a stopper or tap at the end of a pipeline and for flow control of media, available with lever operator, gear operator or pneumatic actuator
  • Wafer design allows the body to slip between 2 flanges
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • NBR seals
  • Stainless steel grade 316 disc
  • Low operating torque
  • Straight through flow
  • Gear Operated
Applications include:
  • Water pipelines
  • Dams
  • Power plants
  • Refineries
  • Pulp and paper
  • Power plants
Technical Specifications
Keywords Wafer Butterfly - Gear Operated
Brand BAT
Disc Material Stainless Steel - Grade 316
End Connection 1 Double Flanged - Table E
Material Cast Iron
Operator Type Gear Operator
Seal Material NBR
Temperature Degree C -40C to +100C
