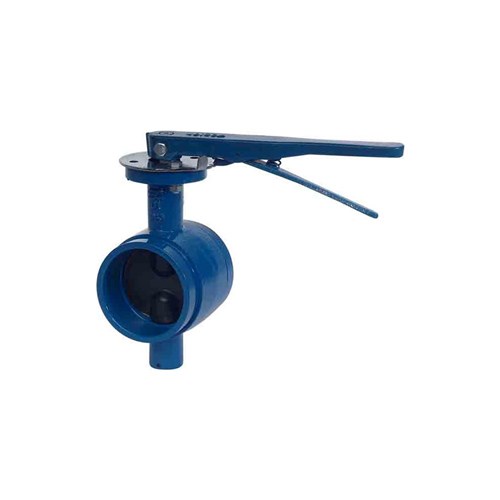

CAST IRON BUTTERFLY VALVE - WAFER WATERMARK x Lever Operated, Roll Groove

Product Code: CIVBFWWVG

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal
  • WATERMARK approved for Potable water use
  • Wafer design with Roll Groove ends allows the body to slip between 2 pipes
  • Quick installation of clamp
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • EPDM seals
  • Stainless steel grade 316 disc
  • Low operating torque
  • Straight through flow
  • Lever Operated
Applications include:
  • Water pipelines
Technical Specifications
Application Potable Water
Approval Watermark
Brand BAT
Disc Material Stainless Steel - Grade 316
End Connection 1 Roll Groove
Material Cast Iron
Operator Type Lever
Seal Material EPDM
Temperature Degree C -20C to +120C
Working Pressure PSI 235
