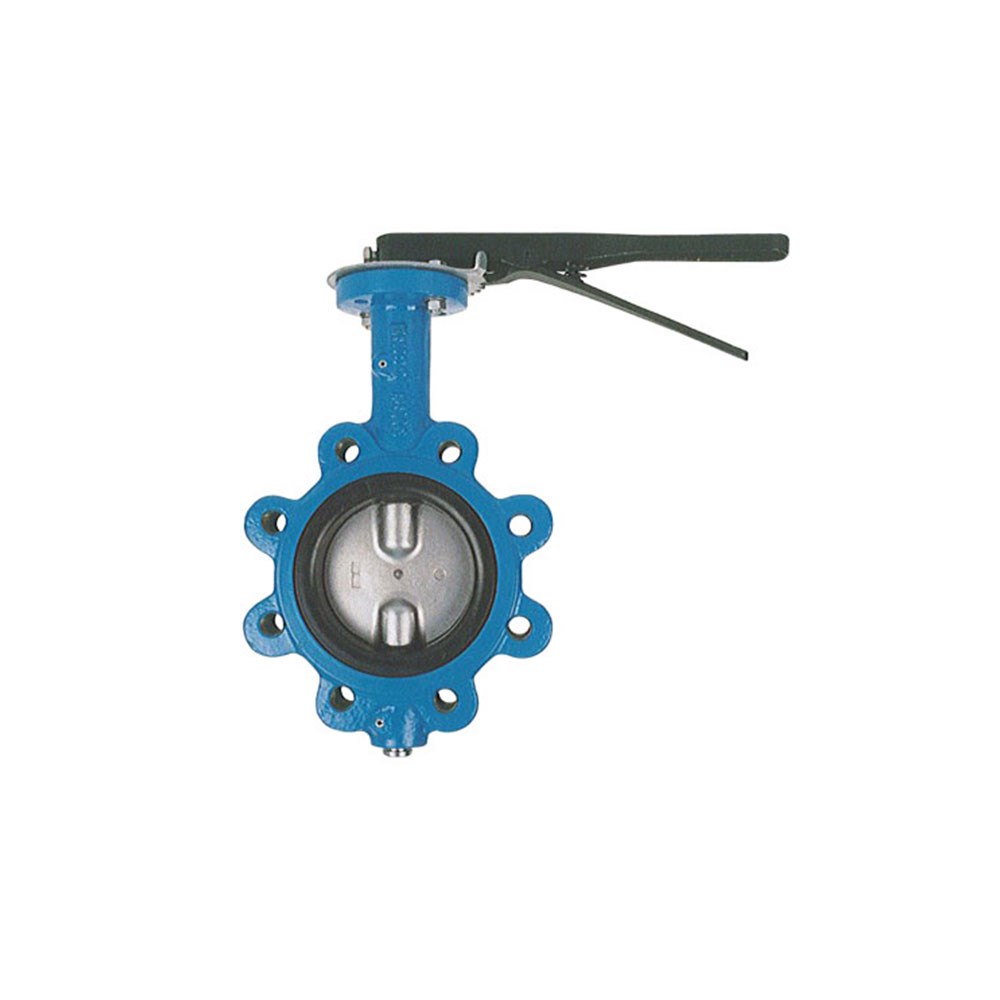

CAST IRON BUTTERFLY VALVE - LUGGED WATERMARK x Lever Operated, EPDM seals

Product Code: CIVBFLW

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description
The design allows for quick installation between pipe flanges and straight through flow. Butterfly valves are durable and efficient with a wing-like action of disc operating at right angles to the flow with sealing effected by the disc impinging against an elestomeric seal
  • WATERMARK approved for Potable water
  • Lugged design with threaded lugs around the body to allow attachment of valve to flange
  • Quick installation
  • Valve shut-off allows for removal of pipe for cleaning without loss of media
  • Bubble tight shut-off against seal
  • EPDM seals
  • Stainless steel grade 316 disc
  • Low operating torque
  • Straight through flow
  • Lever or Gear Operator
Applications include:
  • Water pipelines
Technical Specifications
Keywords Lugged Butterfly - Lever Operator
Approval Watermark & AGA
Brand BAT
Disc Material Stainless Steel - Grade 316
End Connection 1 Lugged
Material Cast Iron
Operator Type Lever
Seal Material EPDM
Temperature Degree C -30C to +120C
Working Pressure PSI 235
