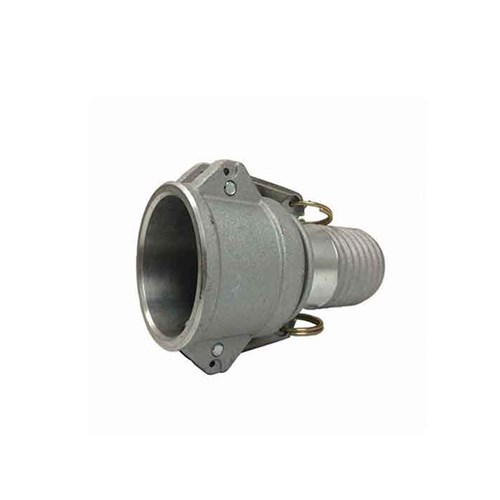

ALUMINIUM CRIMP CAMLOCK COUPLER - Hosetail Part C

Product Code: ALCC-C

RRP $0.00
ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each
Description

A versatile quick release coupling system utilises units with male or female threads for screwing onto piping or pump outlets, flanged ends for connection to pump outlets and hosetails for hose assemblies.

Connection of Camlock couplings is achieved by inserting the Adaptor into the Coupler and closing the arms with hand pressure.

Couplings are in Aluminium to ASTM A356-T6 and Stainless Steel to ASTM A351 Grade 316 and can be used for the transfer of aqueous liquids, dry bulk materials, fuels, chemicals and vapours in Tanker Truck, Industrial, Chemical, Petroleum and Marine industries. Female Couplers come standard with NBR seals, check compatibility data for correct material to suit media being conveyed.

Camlock couplings conform to Military Specification MIL A-A-59326 and are interchangeable in sizes 20 to 150 mm with other products manufactured to the same standard, sizes 200 to 300 mm are not covered by this standard and components from different manufacturers’ may not interchange.

Technical Specifications
Keywords Camlock Coupler
Brand MAXIMUS
Material Aluminium - MIL Spec
Seal Material NBR
Temperature Degree C -40C to +100C
